Studiologic numa compact 2X

$699.95

numacompact 2x

extremely mighty. endless combinations.







The Numa Compact 2x brings to the extreme the power of the Compact family. Packed in the same compact size cabinet there are now 3 sound engines. A tone wheel organ model derived from Numa Organ, the Sledge sound synthesis and 1GB of samples memory. The new USB port allows to transmit and receive digital audio. Save more space using the Numa Compact 2x speakers to amplify the sounds of your computer or tablet.

Power becomes Compact.

The Numa Compact 2x is a big step forward in terms of sound quality, digital post processing effects and full MIDI controller features. Thanks to the built-in speakers and the internal digital amplifier, the Numa Compact 2x is suitable and flexible in any musical environment.
Start from a training session at home and be the king of the stage.

Tone wheel organ

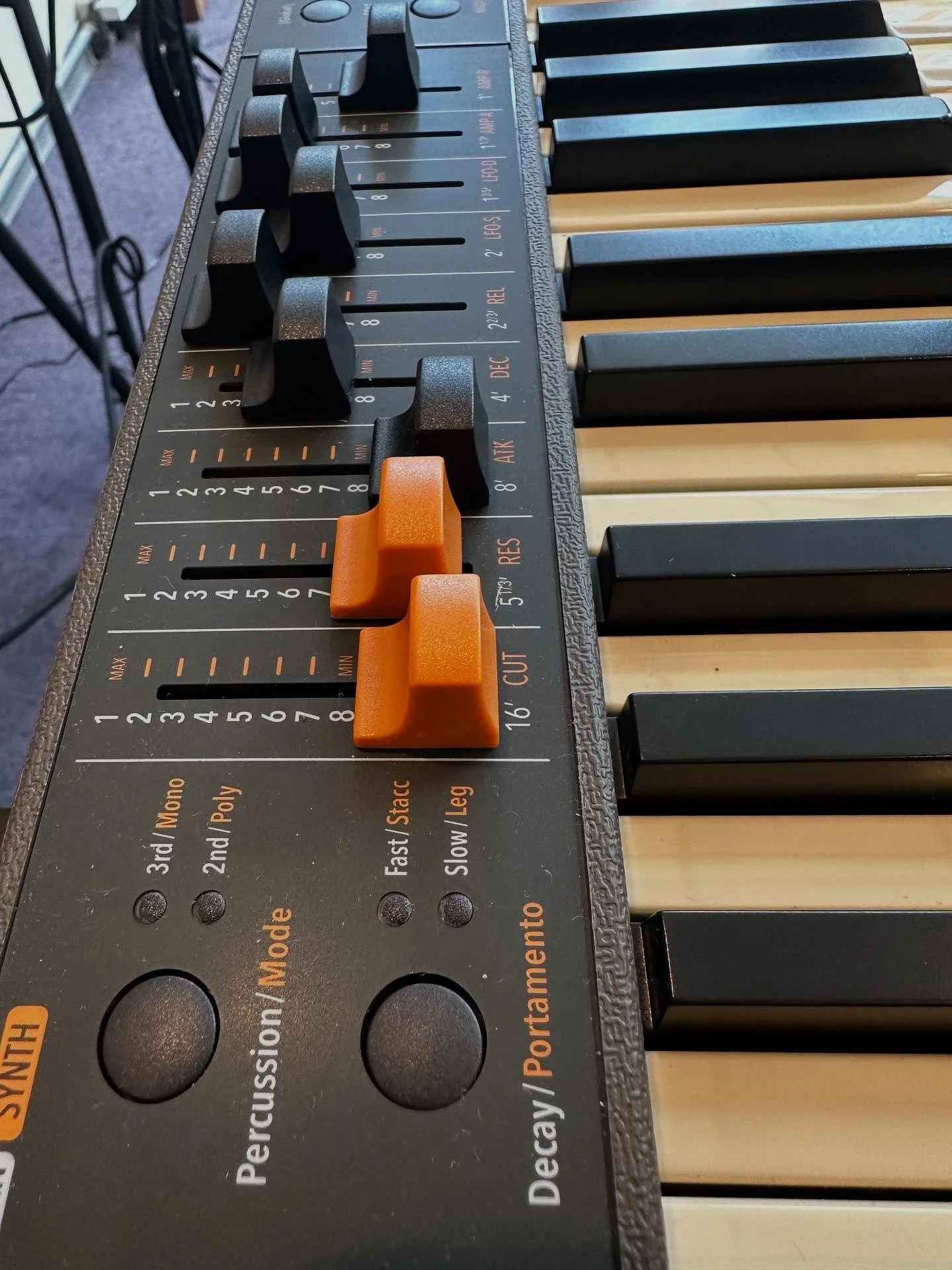

A true tone wheel organ model derived from the acclaimed Numa Organ is implemented in the sound engine. The user interface gains 9 programmable sliders which can be used as Drawbars to control the organ sounds and as linear controls to send Midi CC as well.

Virtual synth machine

The Sledge engine is optimized to fit in the Numa Compact 2x, where it’s possible to create any synthetic sound starting from a basic waves library. Using the 9 sliders section it is possible to control 9 synthesis parameters.

Quantity:
Add To Cart

 Keyboard

  • 88 Keys, TP/9 PIANO semi-weighted Action

  • Dual switch detection system

  • Aftertouch

  • Touch

  • Soft, Medium, Hard, Fixed (programmable)

 Sound generator

  • Max Polyphony 128 voices

  • 2 Parts: Lower + Upper

  • 100 Sounds

  • 8 Acoustic Piano, 8 Electric Piano, 8 Keyboards, 12 Bass & Guitars, 16 Organs, 20 Synthesizers, 12 Orchestral, 16 Other sounds

  • TrS (True Sound) Stereo multi-samples

  • Tone wheel Organ Model (from Numa Organ 2 experience)

  • Synth engine (from Sledge experience)

  • Updatable factory and user sounds

Effects / Processing

  • Up to 6 effects simultaneously: 2 FX on Lower + 2 FX on Upper + Reverb + Strings resonance

  • FX1: Drive, Chorus, Phaser, Flanger

  • FX2: Rotary, Tremolo, Pan Trem, Delay

  • REVERB: Room, Hall, Plate, Spring

  • Strings Resonance on all Piano sounds with level control

Features

  • Sound and Programs

  • 99 User programs

  • 1GB Samples memory

  • 6 Sections

  • 2 Sounds in Layer or Split mode

  • 2 Sounds (additional) from MIDI/USB

  • 2 MIDI Zones in Layer or Split mode

  • Edit functions

  • Global Edit (10 parameters), Part Edit (11 parameters), Mixer (Lower / Upper / Zone A / Zone B volume control)

  • Master controls: Bass, Treble, Mastering, Volume

  • MIDI Module

  • 2 Programmable Zones - A/B

  • Program Change, Bank Select (LSB, MSB), MIDI Channel, Volume, Split assign, Transpose, Octave

  • Pedals 1-2 assign, Sticks 1-2 assign

  • 9 assignable sliders

Speaker system

  • 10 + 10W built-in digital Amplifier

  • 2 Elliptical full range speakers

tune Controls / UI

  • OLED display 128 x 64 dots

  • Encoder with push function

  • 7 potentiometer

  • 23 buttons

  • 9 drawbars | sliders

  • Sticks

  • Stick 1: Pitch

  • Stick 2: Mod + FX Control

 Connections

  • Audio OUT: 2x 6,3 mm mono jack (L+R)

  • Headphones: 6,3 mm TRS jack (programmable as Aux out)

  • Pedals: Expression, Universal

  • MIDI: In, Out

  • USB: Audio, MIDI, power1, Manager App
